Eagle3D

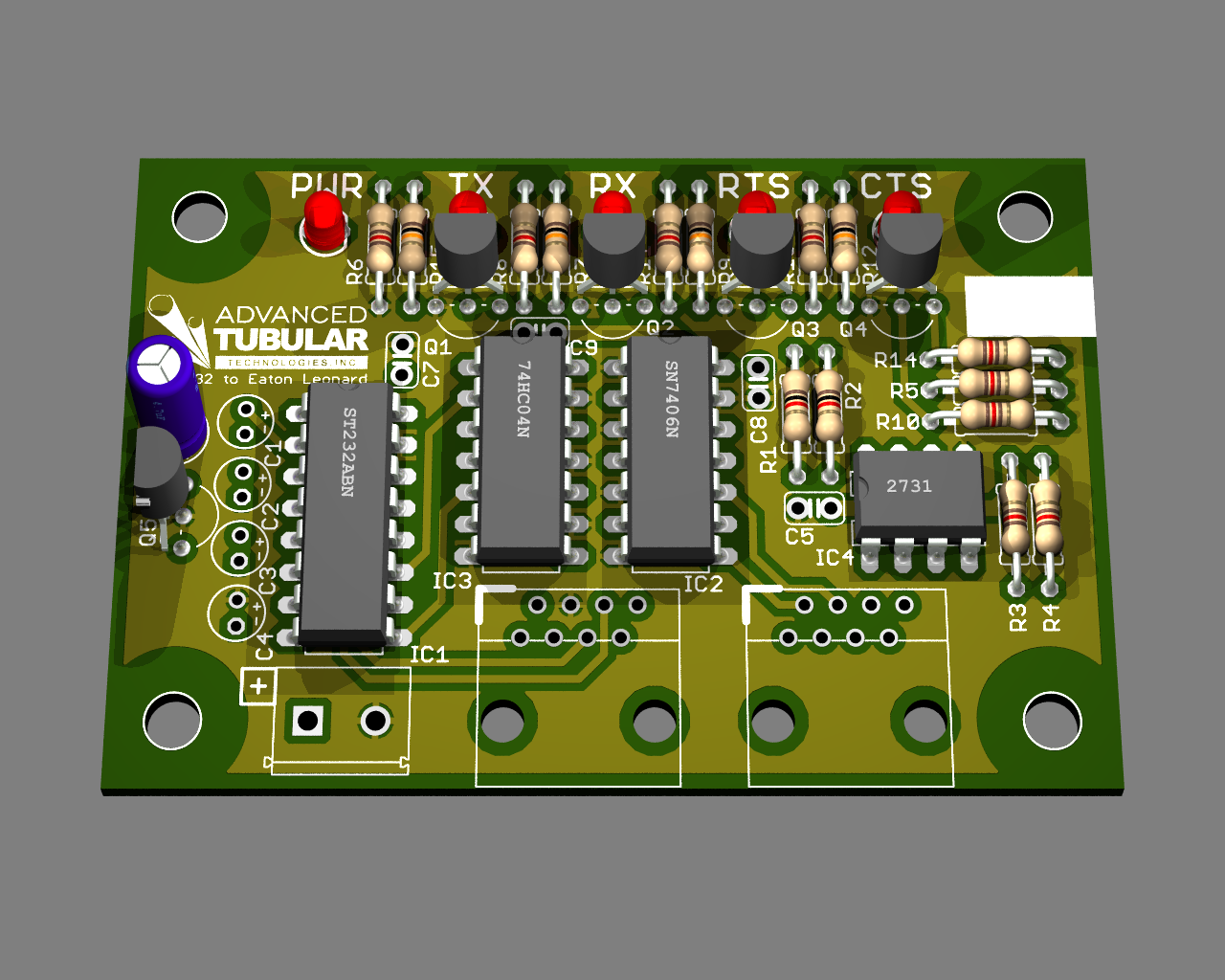

Second-Try Render from Eagle3D

A bit bored at work today I’m poking around with Eagle3D which generates POVray files from CadSoft Eagle .brd files. The ceramic disc caps up there are wrong caps are mostly missing, the TO-92 parts are misaligned, and the screw terminals and RJ45 connectors are missing, but I think it looks pretty nifty.

At this point I’m going to stop messing with it and get some lunch. I don’t need an accurate rendering of the board for anything, I just thought it was nifty to mess with. Now to figure out some lunch… I’m not sure what I’m going to have, but it’ll probably be something low cost.
