Boards Ordered, etc.

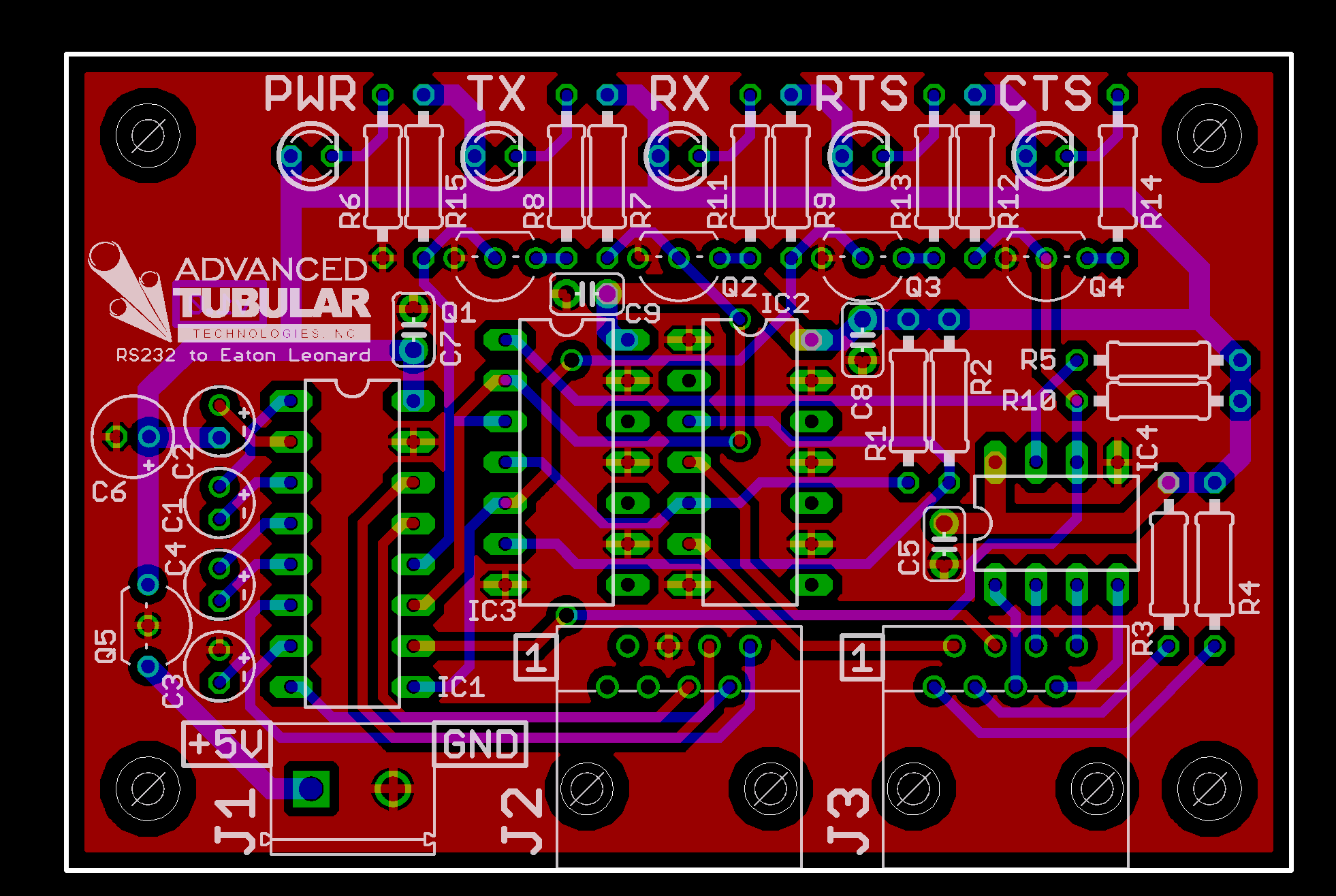

Final v1.0 Board
(Click for 600dpi version…)

Well, it’s done. I’ve ordered the first run of boards, all the parts needed to make 11 pieces, lead-free solder, static shielding bags, etc.

The biggest difference between the previously posted version and this one is I had to squeeze in four more resistors (pull-ups for the lines going to and from the MAX232), but that wasn’t too difficult to do.

Now it’s time for Danielle and I to go get food and see a movie.
