Cut Down SCPH-1080 PCB and Pushbuttons
(Click for huuuuge image…)

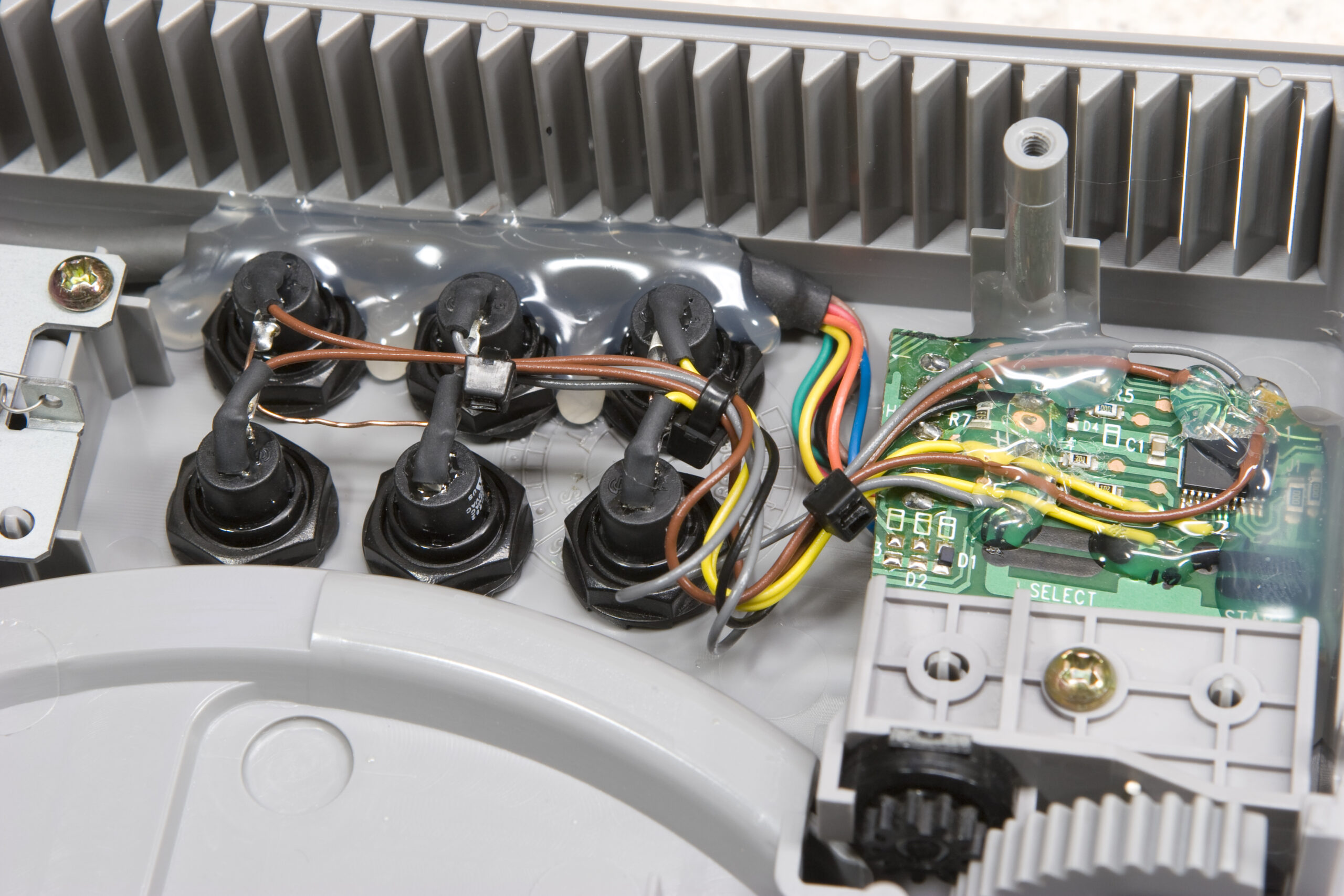

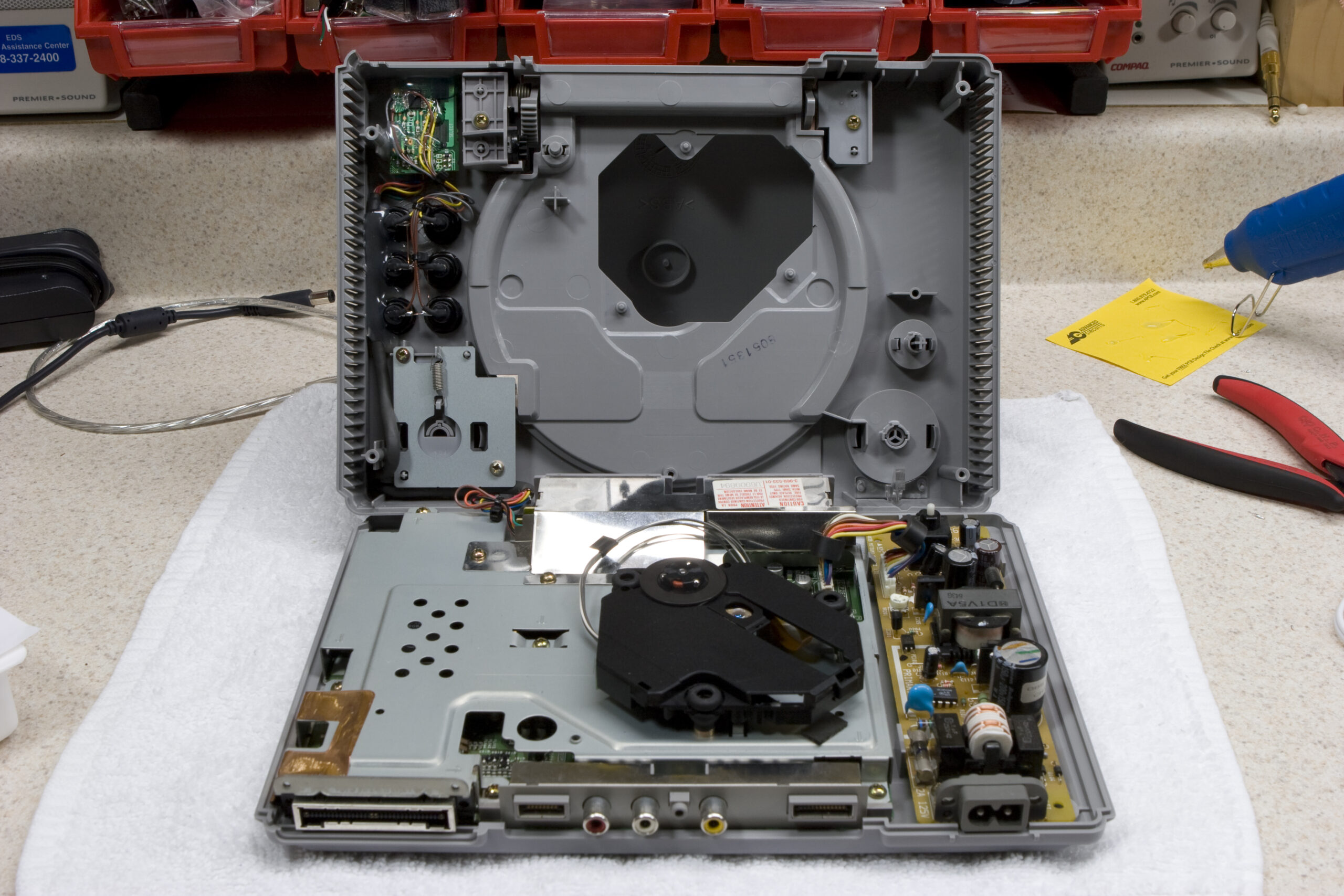

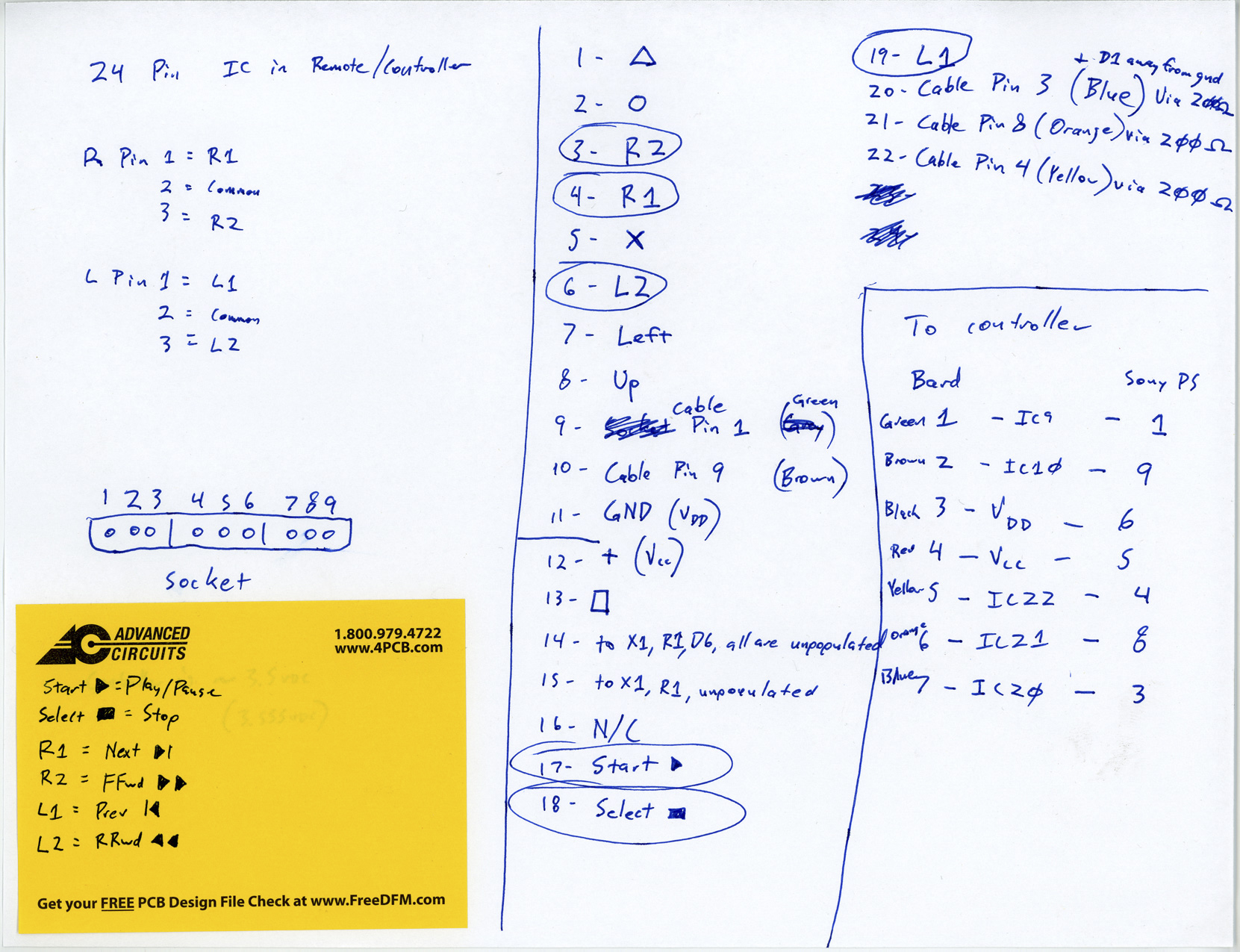

Last night I spent a while cleaning the plastics on the SCPH-1001 that I was putting buttons in, reassembled the lid and closing mechanism, mounted the buttons and ground bus, wired up the signal lines, connected the signal lines to the pcb, and… screwed up. I’m not completely sure where I went wrong yet, but I *think* I miscounted the pins on the IC late last night when making up these notes, and possibly counted pins wrong. I still haven’t figured out what is wrong, but I think this is where things are off.

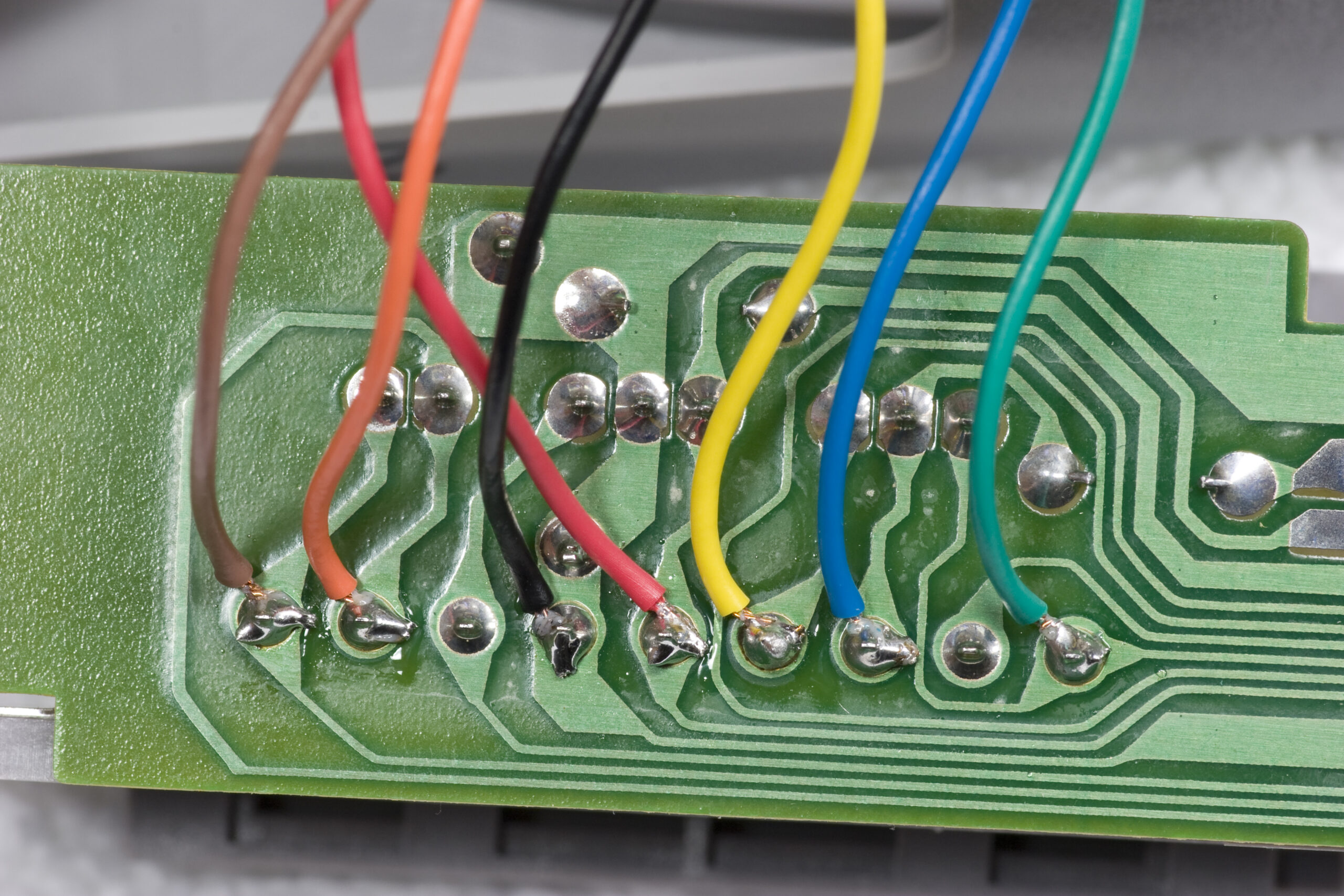

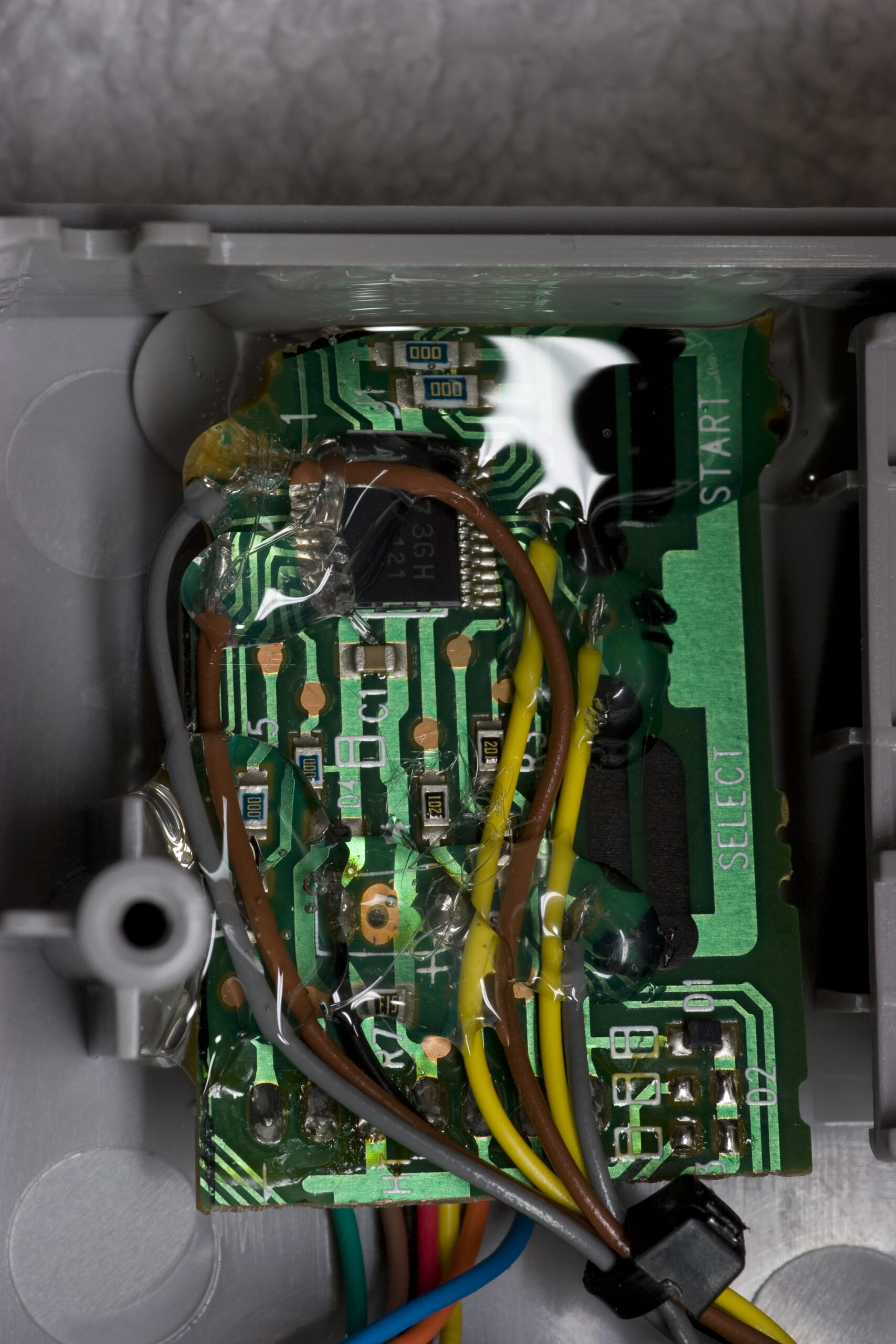

I confirmed that the connection to the rear of the controller jack is right, and things connect right to the PCB. I don’t see a short between any of the signal lines, and the Playstation does boot to the CD player screen without error. So, I’m kinda thinking I screwed up something with the PCB. I’m just a bit frustrated because I secured the wires to the board and then secured the PCB into the enclosure with hot melt glue. It’ll be a hassle to rip out, and I won’t be able to reuse the PCB. That means I’ll have to find another Playstation controller. Oh well. :(

And here I was quite happy over how it had all fit into the enclosure. I’ll just have to work on it a bit more, I guess.

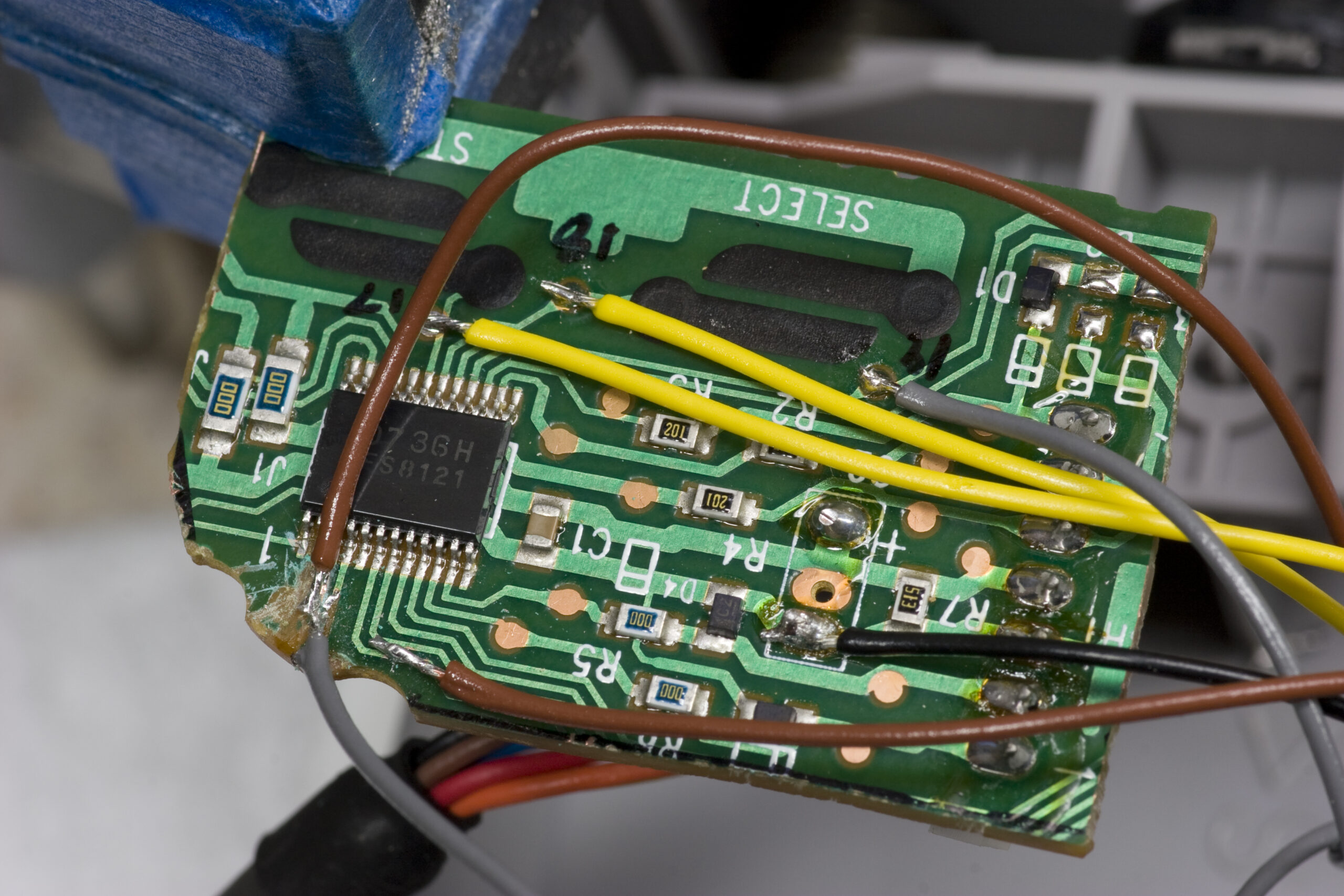

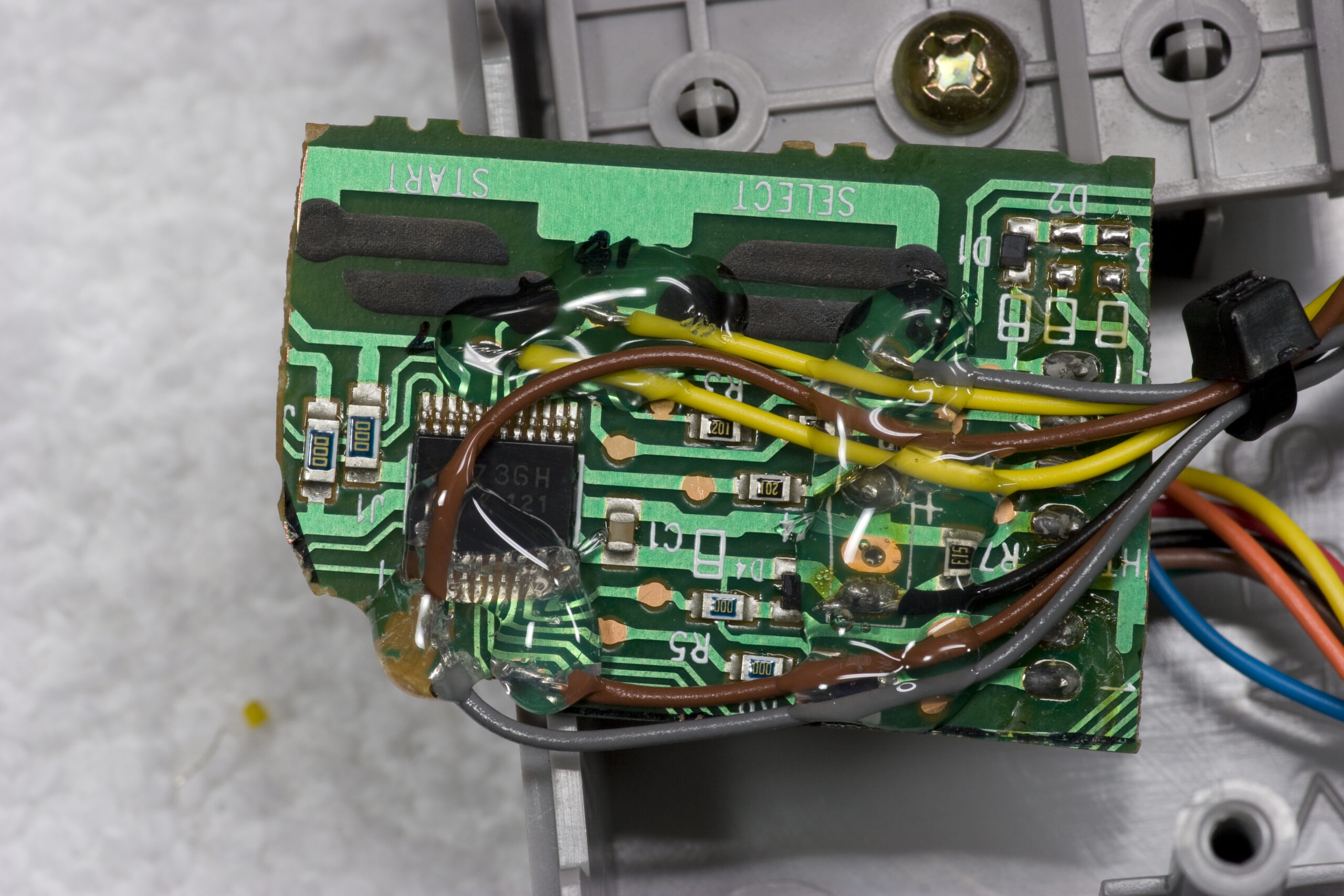

SCPH-1080 Playstation Controller PCB, Cut To Size, With Test Wire
(Click for more photos…)

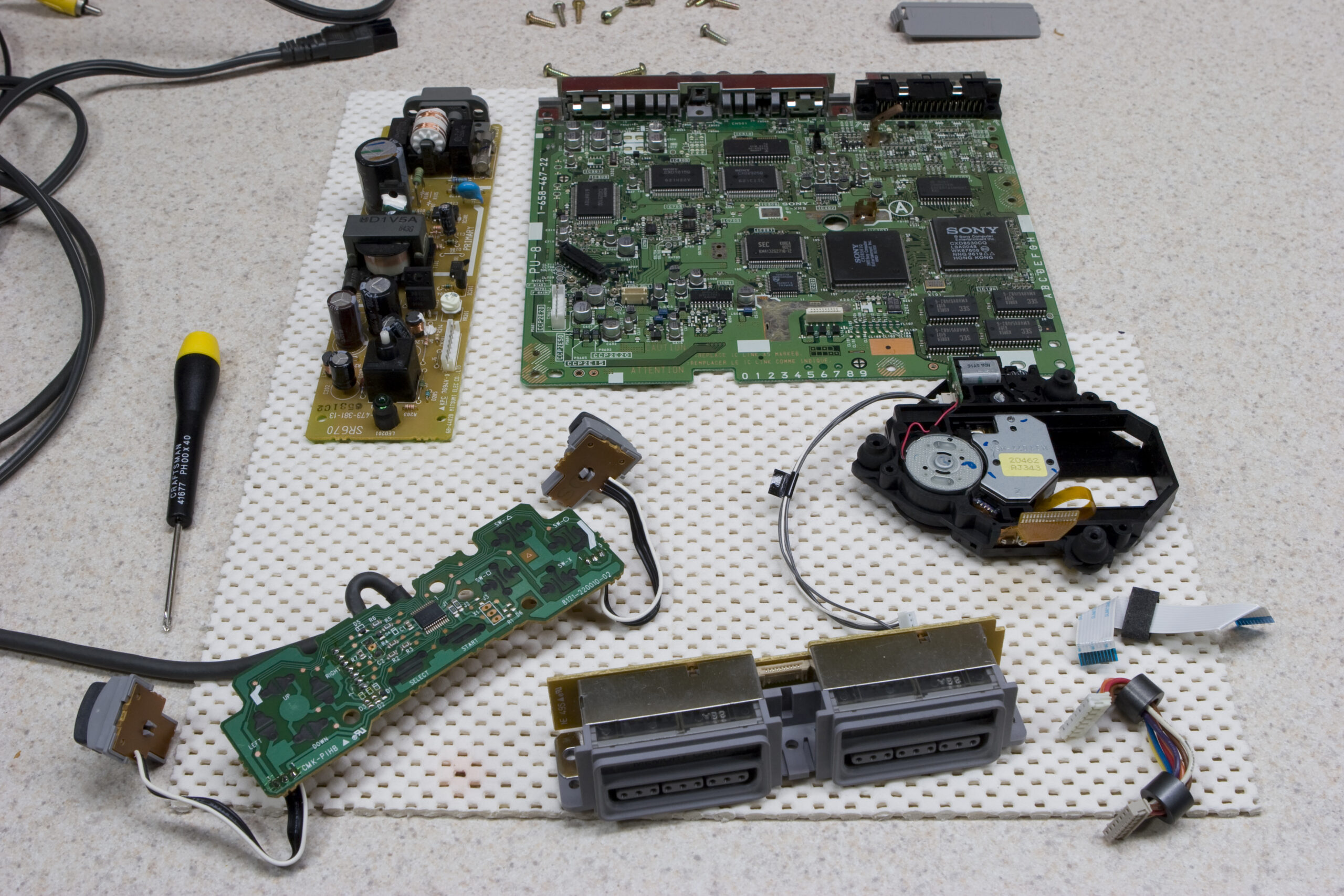

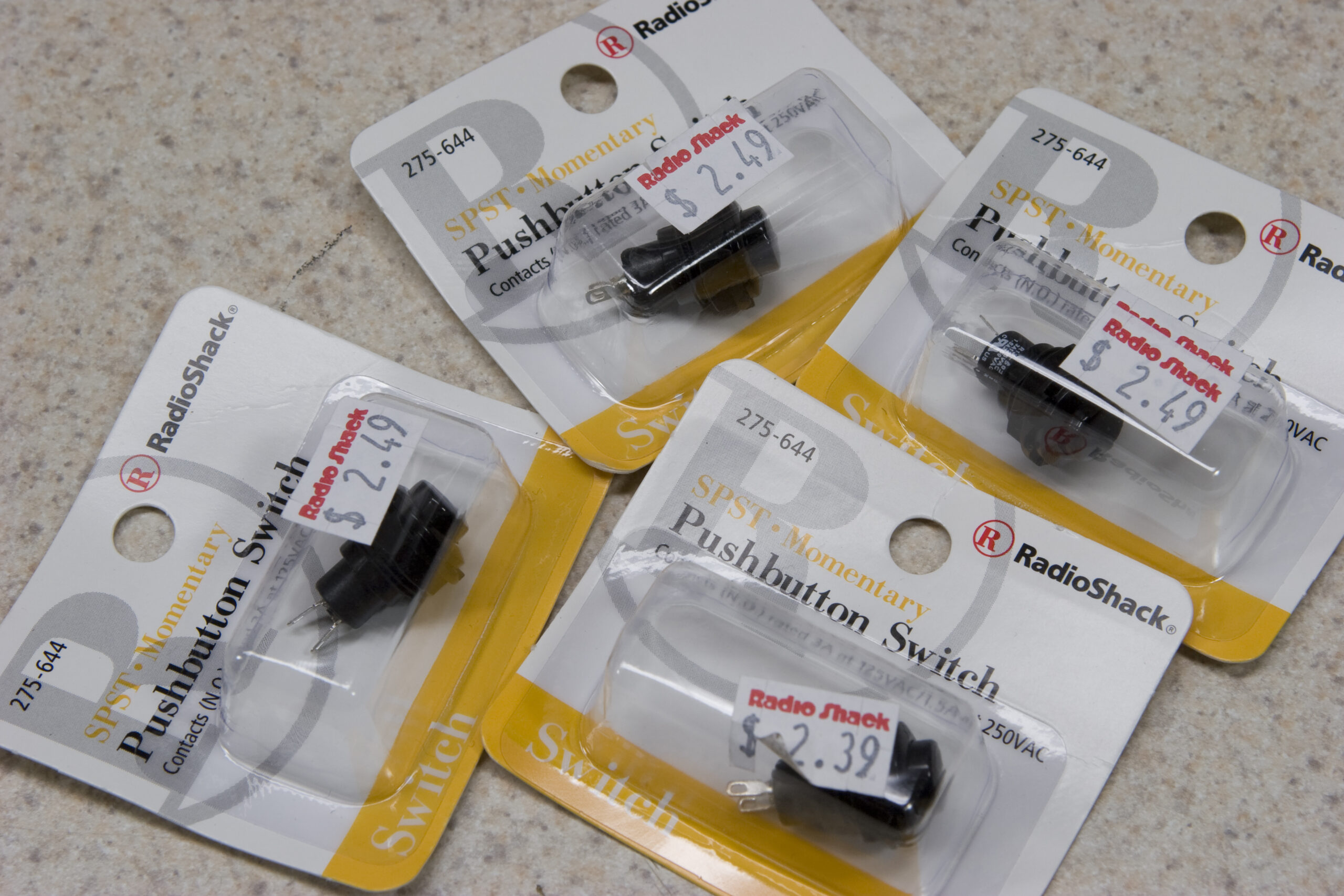

A little while back I posted something which showed me using a SCPH-1001 Playstation as a CD player with my recently completedMillett Hybrid Maxed headphone amp. Well, after taking the SCPH-1001 apart over the weekend I picked up some overpriced buttons from Radio Shack (so I could get started on things today) and… got to work on it.

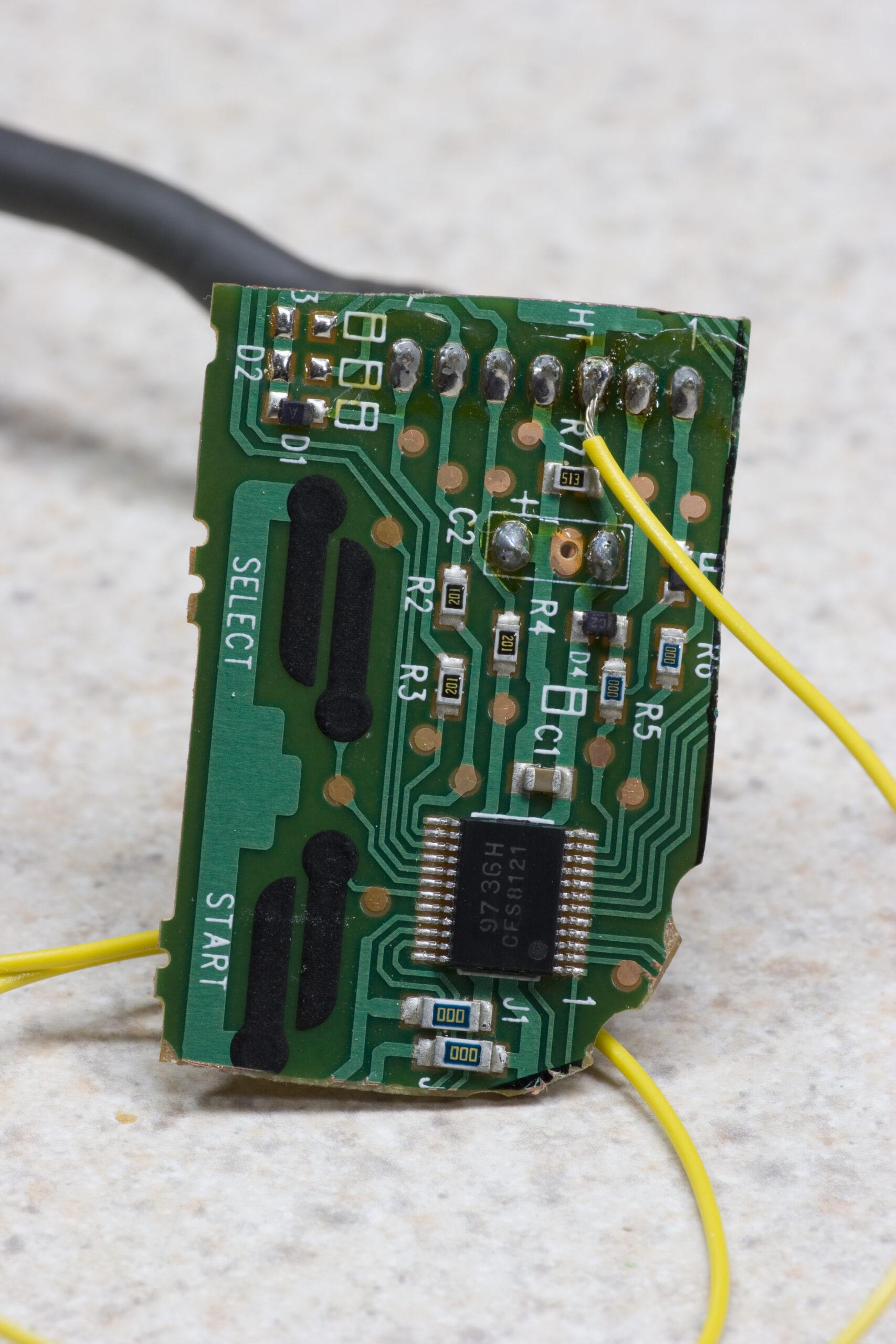

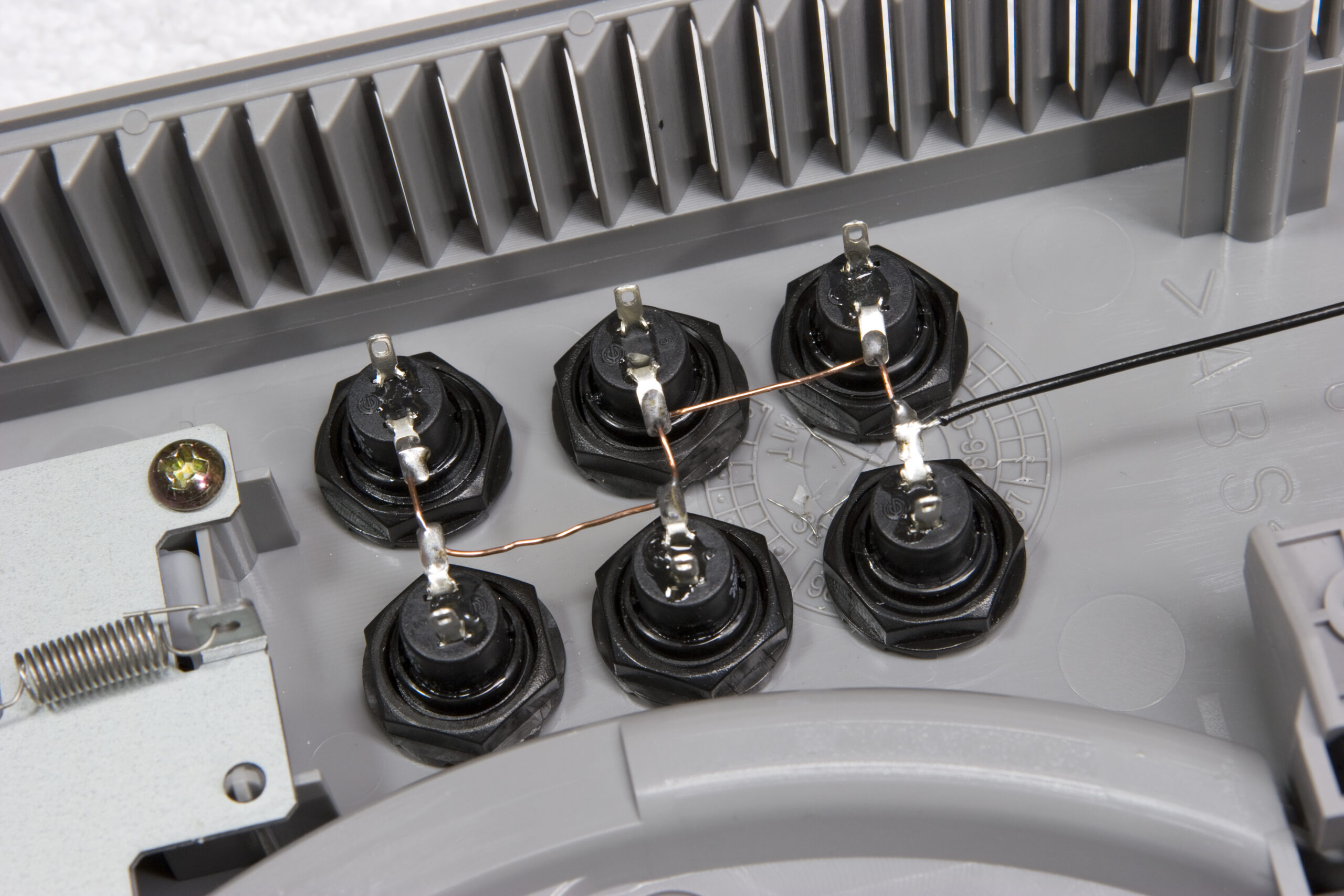

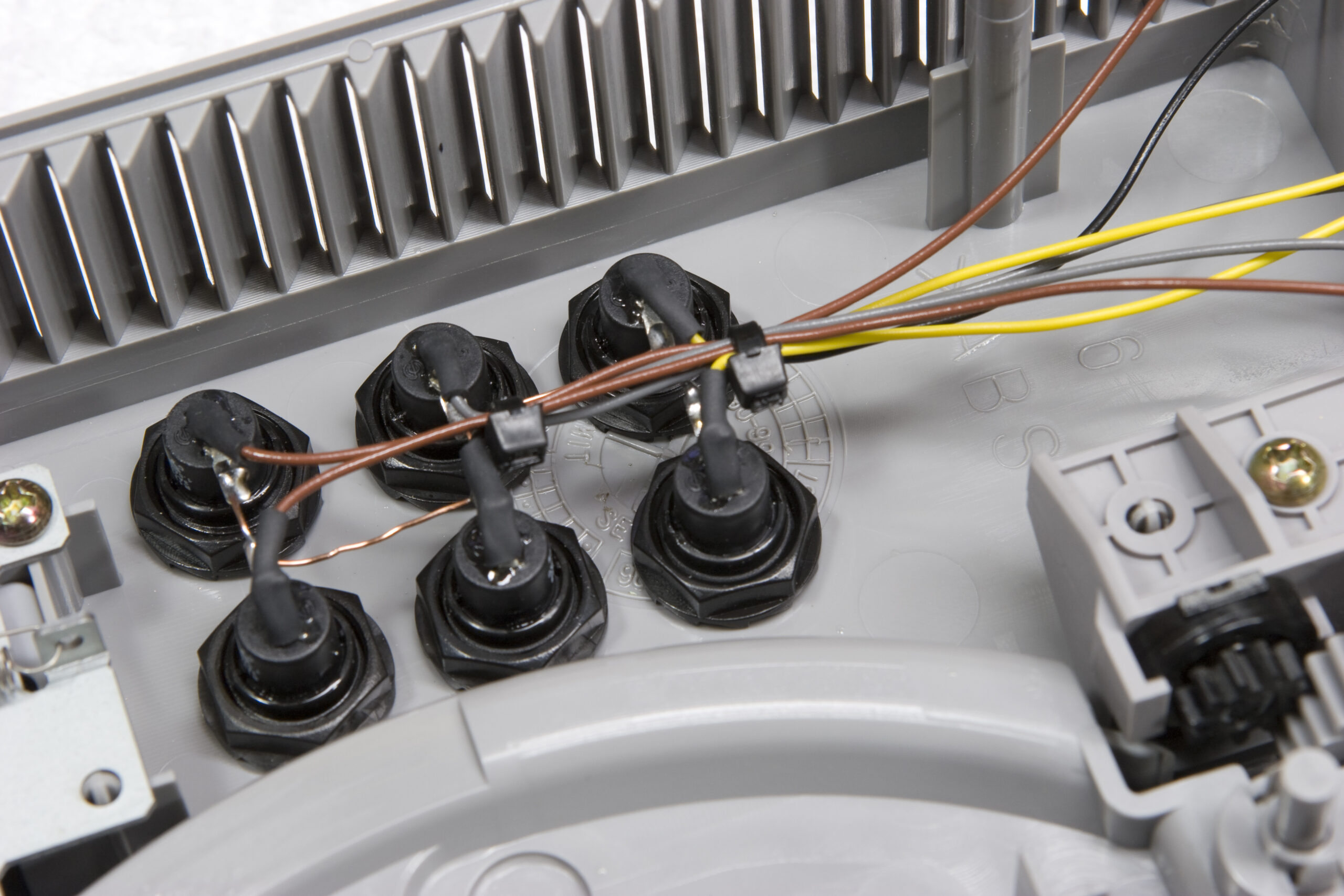

I don’t have much to say yet, as I’m only about half-way done, but I think it should work. Basically, I’m taking the PCB from inside a controller, cutting it down to around the minimum needed (as seen above), and wiring it up to some buttons on the top of the case to act as the controller buttons needed for CD playing. The buttons will be Play/Pause, Stop, Prev Track, Next Track, Rewind, Fast Forward.

Yes, it’s a massive hack, and I normally don’t like the cutting-down-the-PCB idea, but I just wanted this done quickly and cheaply. I thought about lifting that IC and making my own board for it, but that wouldn’t provide any benefit, and would just be more effort. So, I’m doing it this way.

More pictures of this can be found here (photo gallery retired). Tomorrow I’m hoping to finish it up, and I think it’ll be possible. I’ll post more photos and maybe do one of my cheesey project writeups then.

My Completed Millett Hybrid Maxed
(Click for my write-up…)

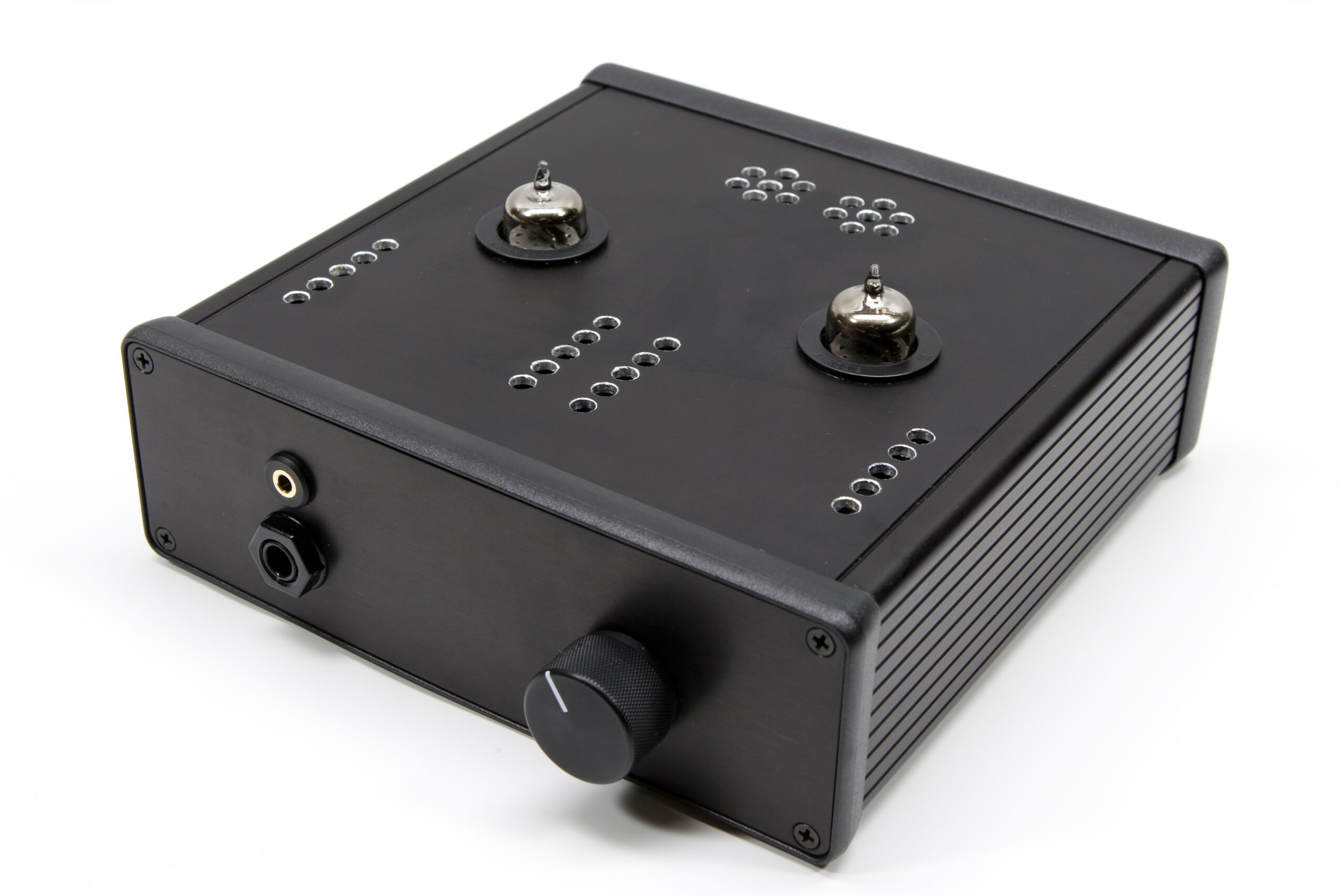

Well, I finally (mostly) finished my brief writeup / overview of my building of the Millett Hybrid Maxed tube-based headphone amplifier. It covers info about the parts I used, including knobs, case, jacks, plugs, etc. I also wrote up a bit about the issues I experienced in building it.
