RS232 to Eaton Leonard Interface Prototype

May 22, 2007

Completed Prototype PCB

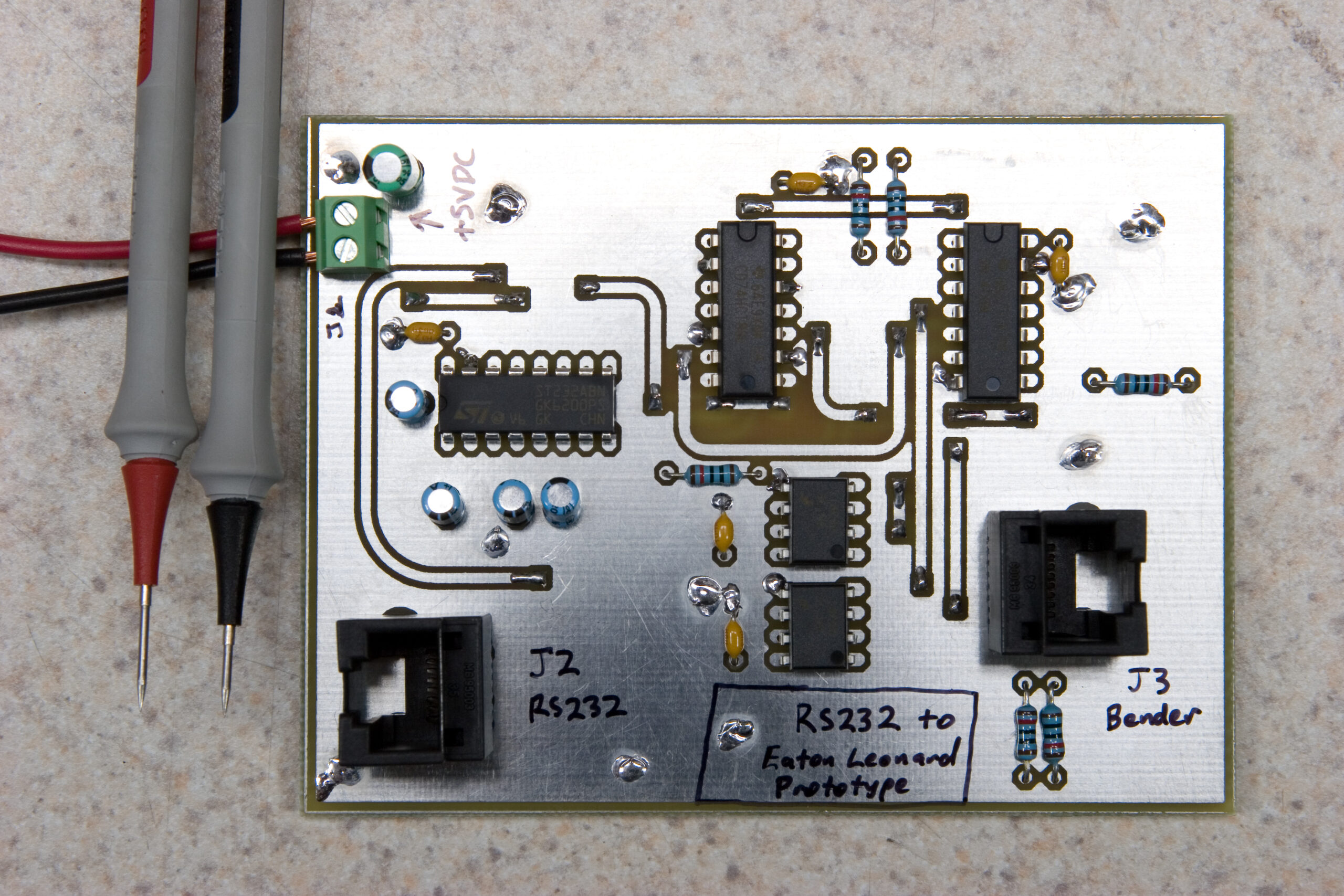

Well, after about five hours of working this evening (after laying out the board in free time at work) I’ve finished the prototype PCB for the project I’ve been working on for a friend’s company.

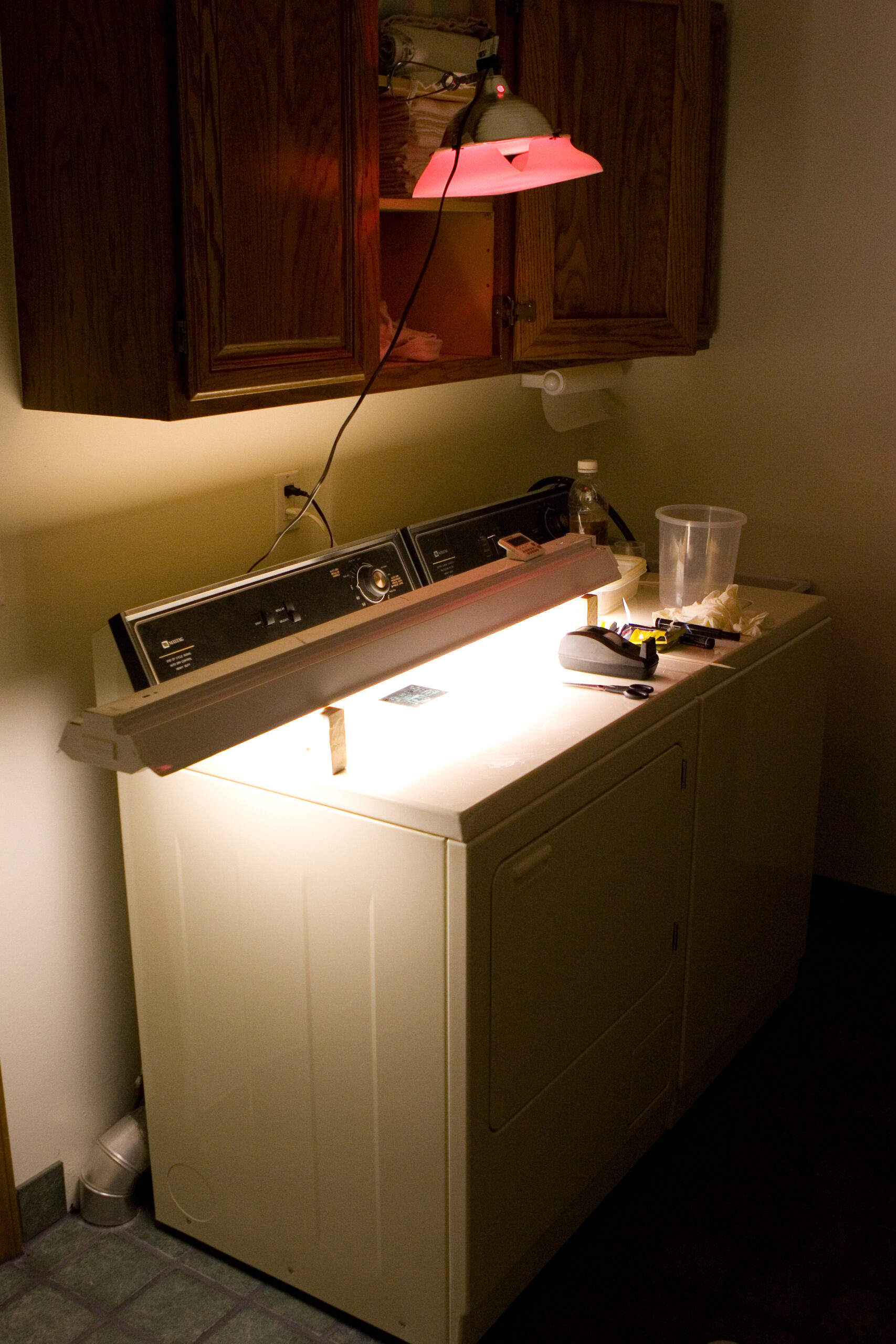

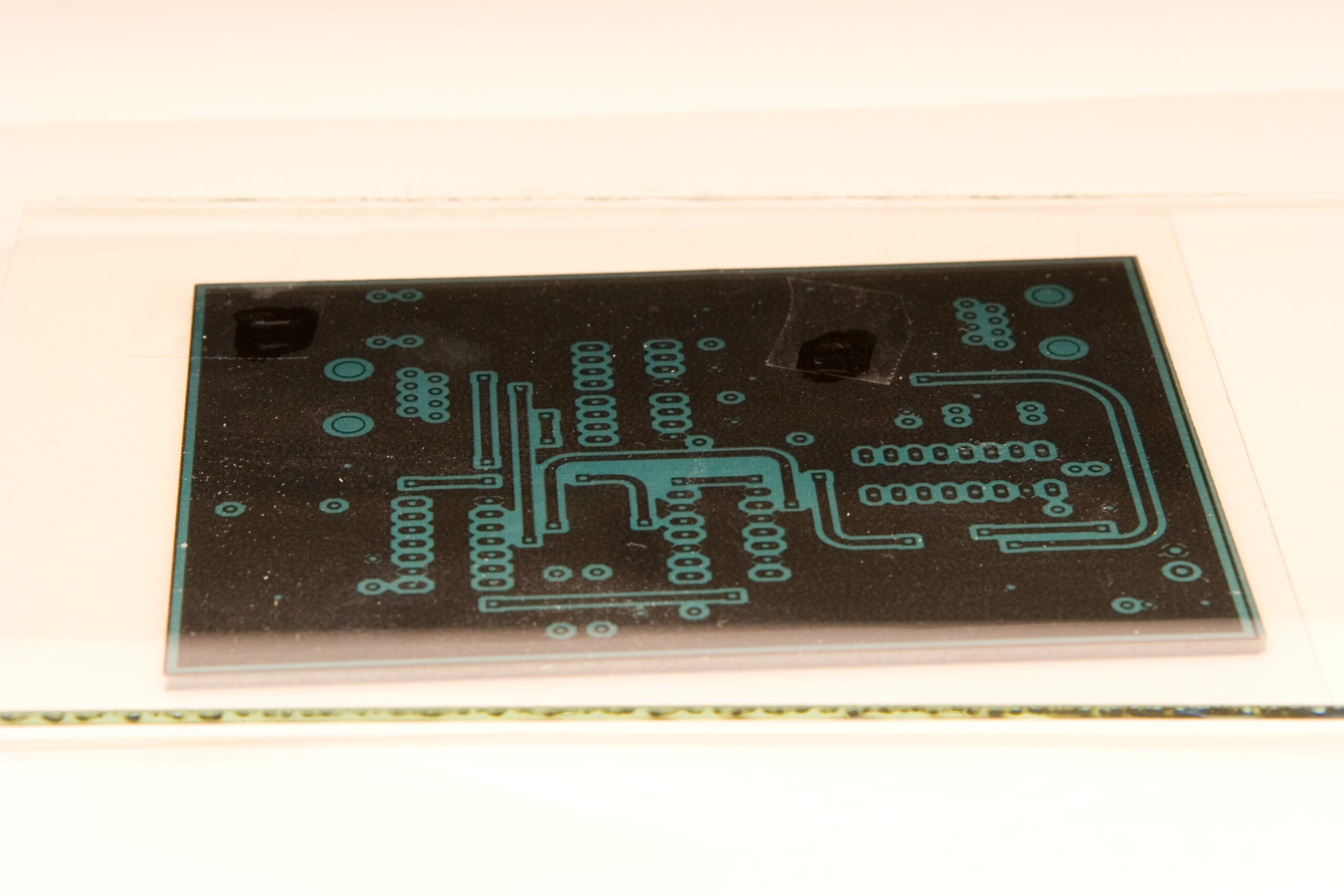

As with the last few boards I’ve done, I etched it in the laundry room, as the laundry tub and large flat surface makes for a good place to work. (Photo of PCB being exposed.)

Then I drilled the board, breaking more PCB drill bits than I like to. Next came manual bridging of vias (which is a really awful chore), and then finally assembly. After I had it put together I powered it up, probed around for shorts, and generally confirmed that it wouldn’t explode.

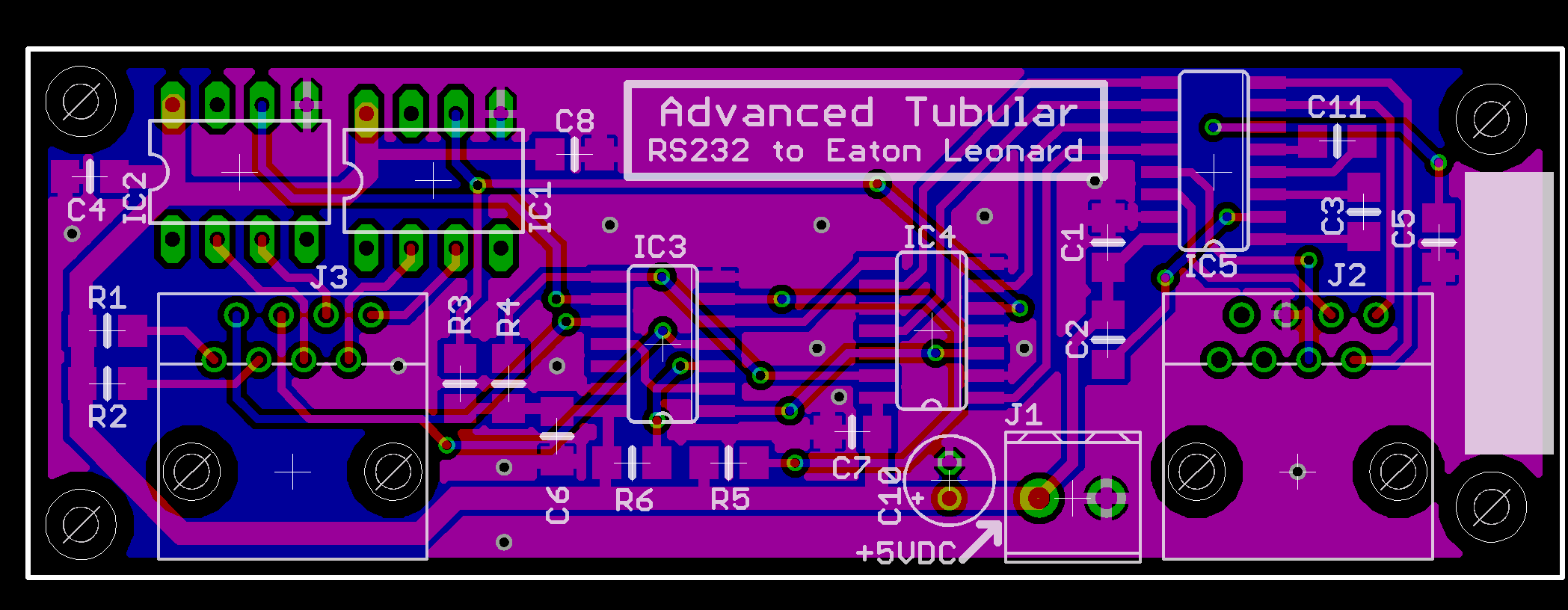

Tomorrow I’ll confirm that the pinout of the board is as expected, and hopefully I’ll be able to deliver it at lunch time. If it works I’ll (hopefully) have some production boards made for them. I stayed late at work avoiding traffic and worked up a first draft of a mostly-SMT board layout, fitting in ~30mm x ~85mm. If I end up producing these boards I can see the final product being something like this, should I choose to do it SMT.

Hopefully tomorrow I’ll get to unpack the new baking stone, the new x0xb0x kit, and maybe just relax a bit. For now it’s bed time. Goodnight.

electronicsmaking thingsmoved from livejournal

HMLiberator Assembled

May 18, 2007

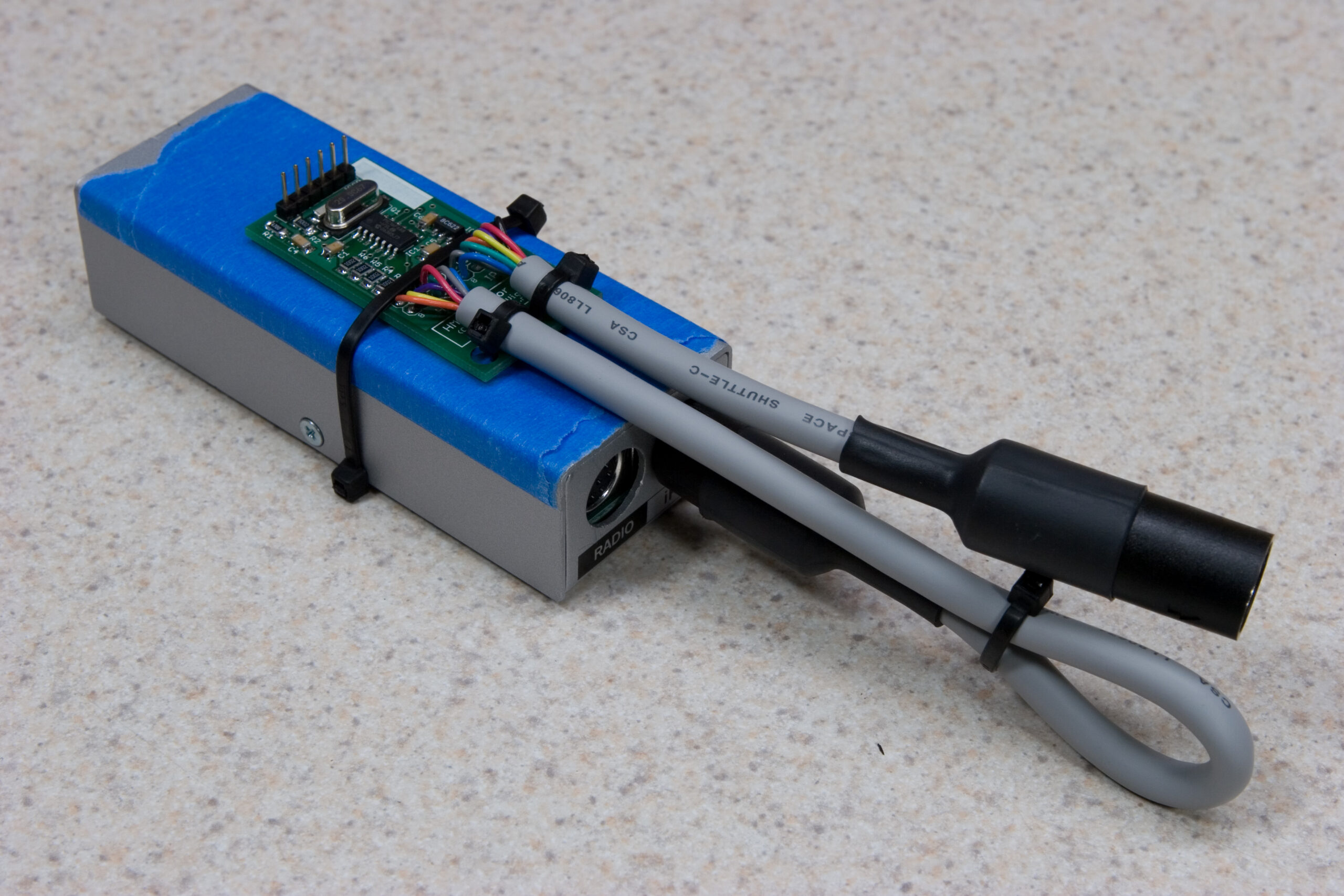

First HMLiberator Assembly with Honda Music Link

Well, there’s an assembled version of the first HMLiberator, strapped to the top of a Honda Music Link. This is very similar to what the final assembly will look like, except the ISCP connector will not be soldered on, the part will be encased in shrink tubing, and there will likely be slightly different cable / connectors used.

I still have a good ways to go on the software. If connected it’s possible to use all controls on the iPod to play music and hear it through the stereo (the initial goal), but I still have to address the following things:

· iPod does not pause / power off when vehicle is powered off.
· HML continues charging iPod while vehicle is powered off. (HML’s software is hanging and not cutting power to the iPod.)
· Attempting to change track on the head unit hangs the HML. (I think it’s not getting the response it desires.)

I think most of these are just a matter of getting the false polling mode, track change responses, and things like that working. After I get back from up north (and get the serial level converter prototype made) I’ll put together another serial sniffer and get back to work on the software.

automotiveelectronicsmoved from livejournal

HMLibeartor v1.0 PCBs Have Arrived

May 16, 2007

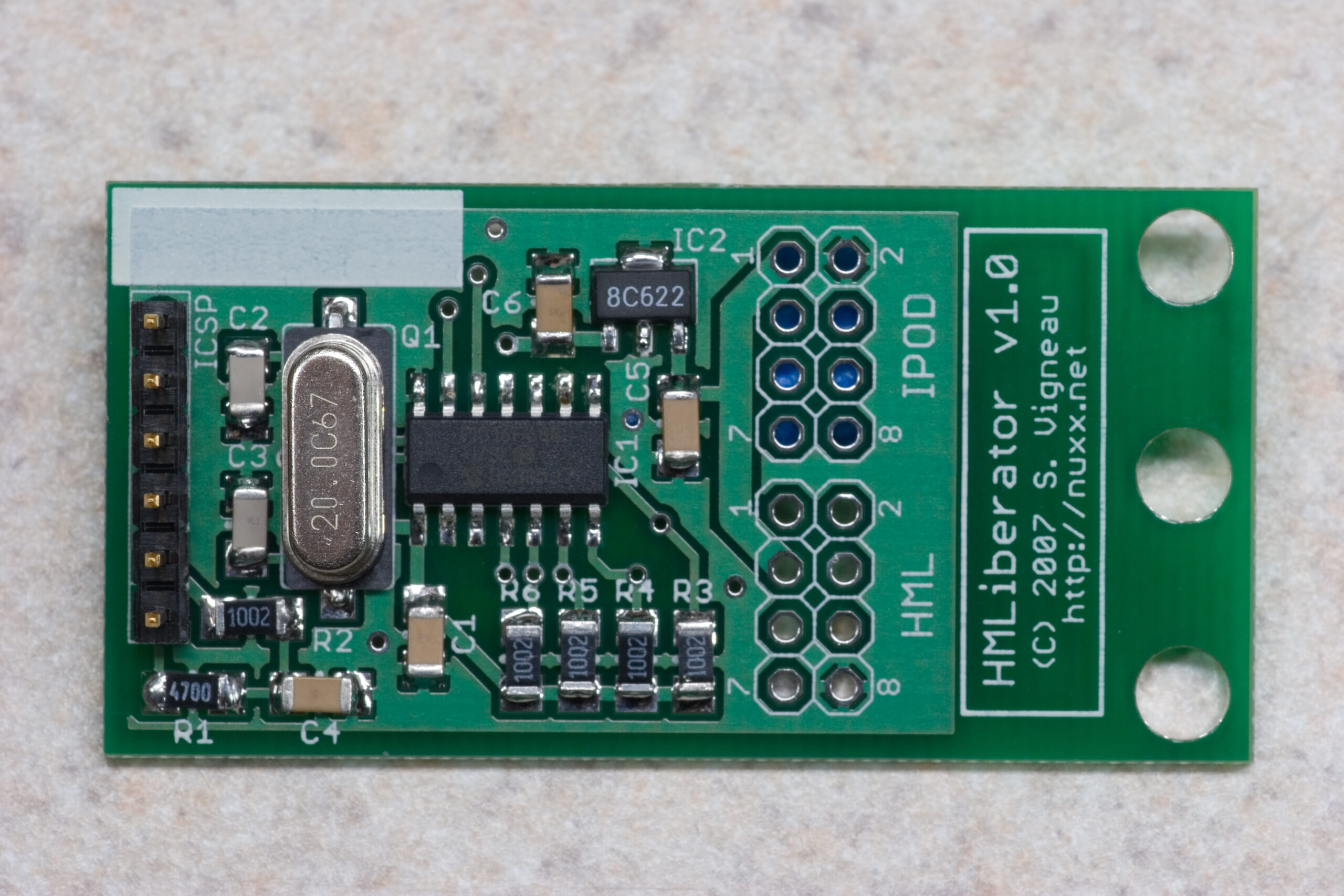

HMLiberator v1.0 PCB complete, except for cables.

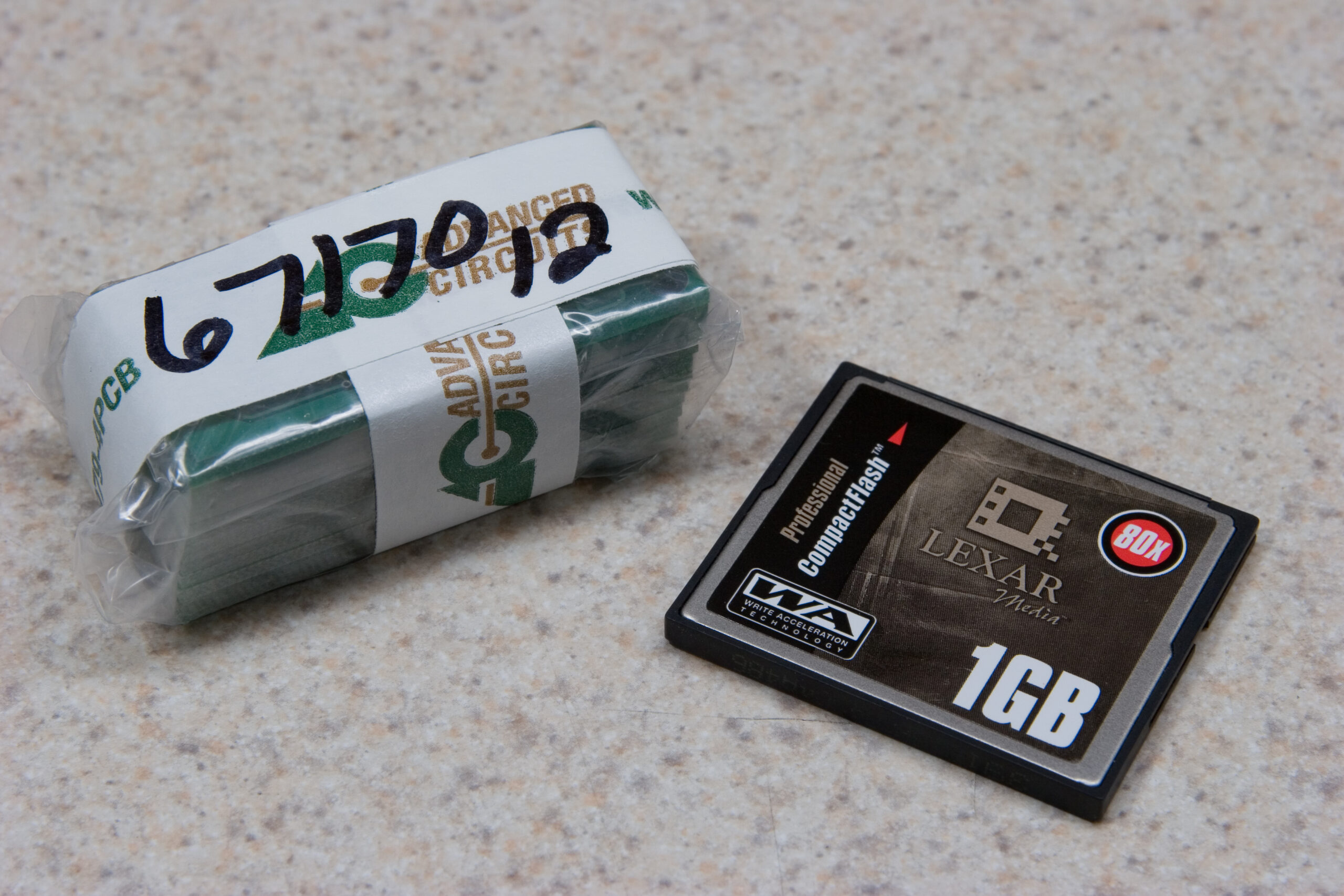

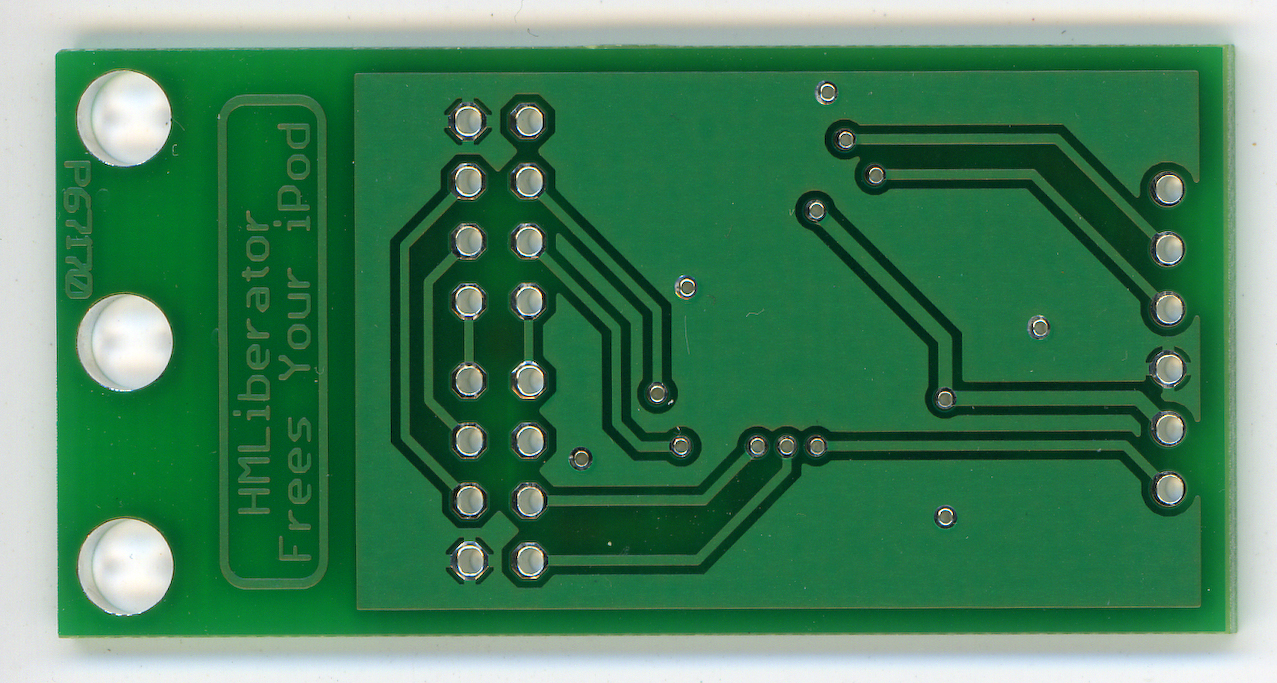

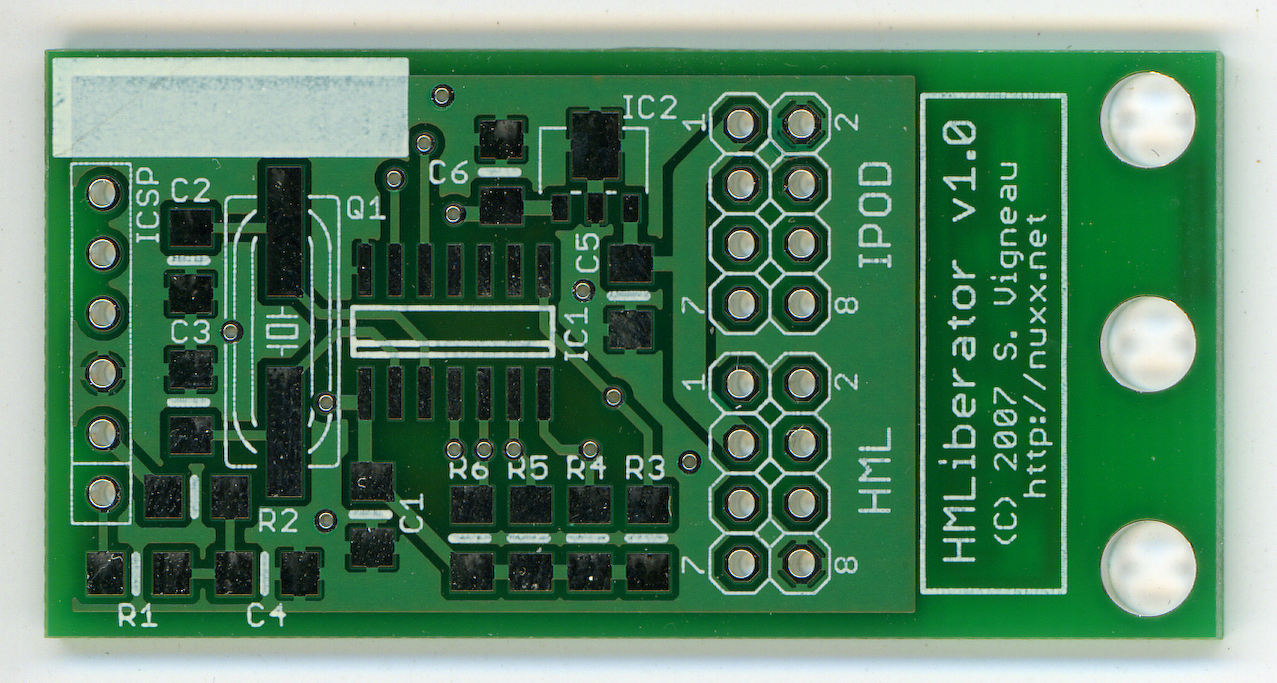

Well, the HMLiberator v1.0 PCBs arrived today from Advanced Circuits. (Top and Bottom at 600dpi.) They came in a rather large box which can be seen in the photo in this post. The size of the box seemed to matter, though, as not only did it contain the wrapped stack of PCBs, it also contained a t-shirt, sticky notes, and a bag of microwave popcorn.

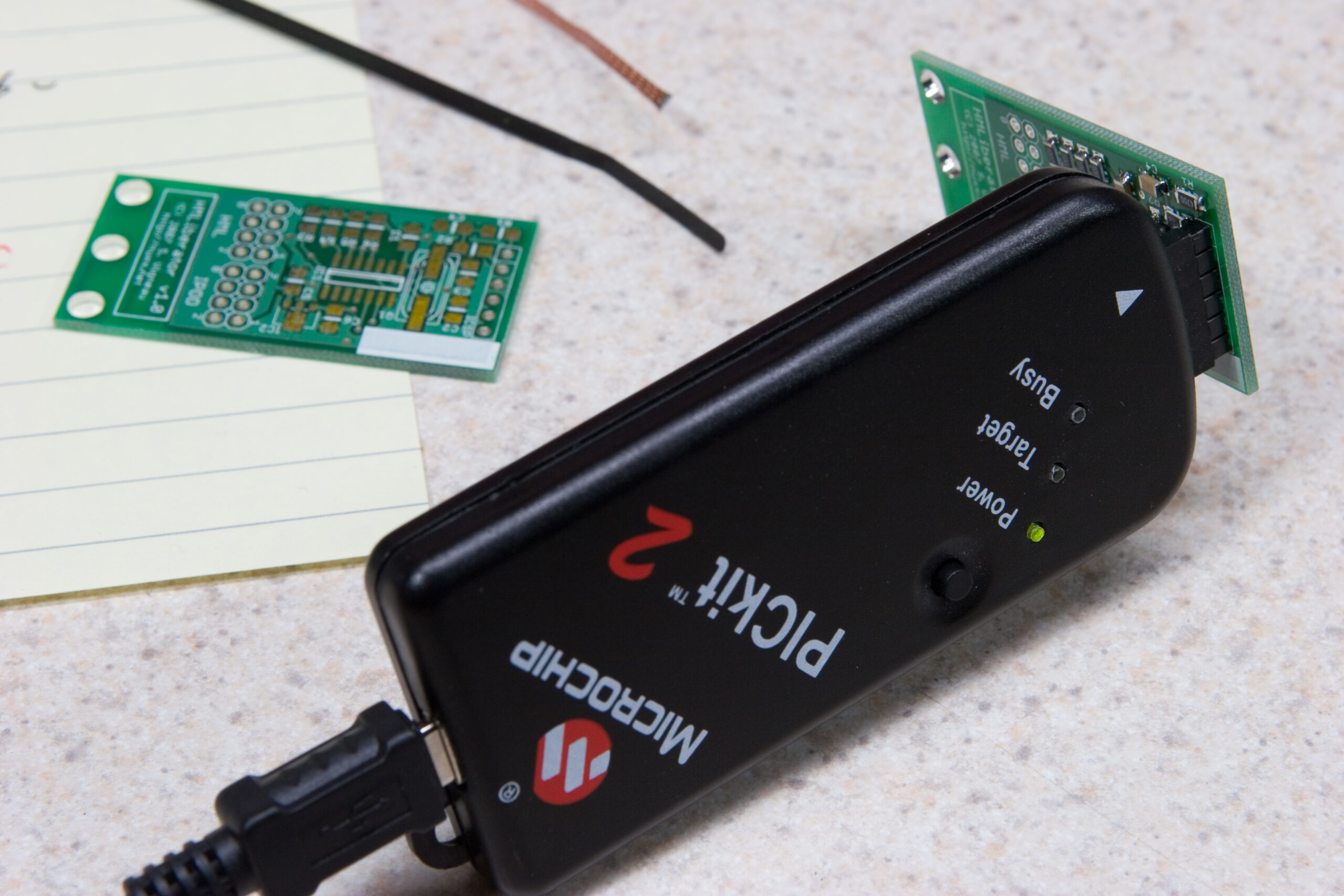

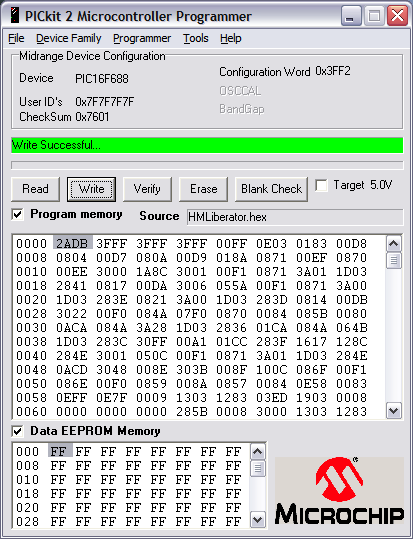

I got the first board fully assembled, with the SMT stuff taking a bit longer than normal, although I found that it wasn’t too bad. Things must have gone at least partially right because once I connected the programer to do a test-write with some random copy of the firmware it wrote successfully.

Since Danielle just got here we’re going to grab food and watch a movie. Tomorrow I’ll test the voltage regulator, add the header cables, and connect it to the car for the first time. Hopefully it’ll work. :)

automotiveelectronicsmaking thingsmoved from livejournal

My Office

May 16, 2007

(Cross posted from YakYak…)


Here’s my desk / office at home taken with an 8mm fisheye lens. You can just barely see the door and G5, which are in opposite corners of a 12′ x 12′ room.

That’s exactly how it is now, except I’ve opened the just-received-before-photo box from Advanced Circuits. (They are the prototype PCBs for a project I’m working on.)

Click on the image to make it full size…

(And please ignore all the wacky flare. It is a fisheye with a 47W diffused daylight CF near the edge.)

around the houseelectronicsmoved from livejournal
